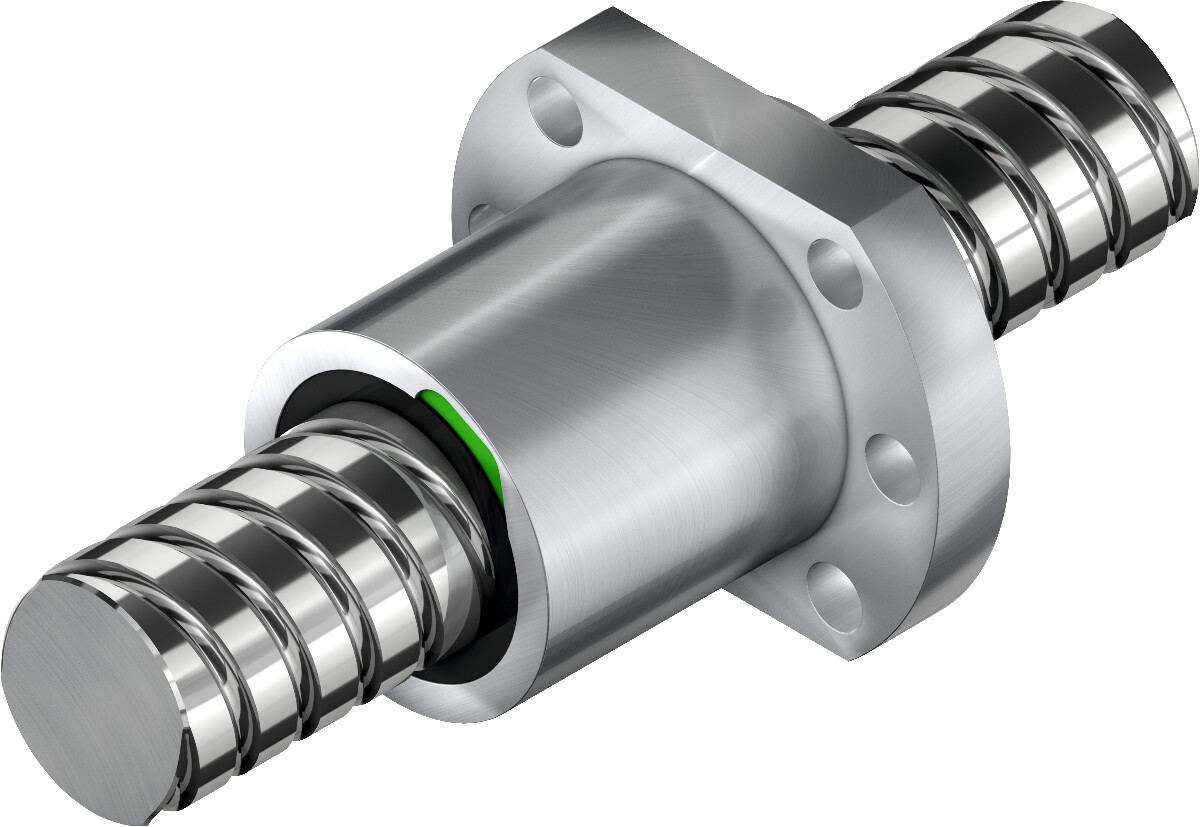

Flange nut

Flange nuts are the most commonly used nuts in ballscrews. They are easy to mount over the flange and take up little space outside the application. The flange includes a grease nipple which can be used to lubricate the ballscrew using a grease gun or a central lubrication system.
75 product(s)
Type Lead ds D D1 L
Cdyn

C0

Axial play

Mm

R12-05K4-FSCDIN
5 11,9 24 40 33
R12-10K3-FSCDIN
10 11,9 24 40 43
R15-05K4-FSCDIN
5 13,8 28 48 38
R16-05T3-FSIDIN
5 16 28 48 40
R16-10K3-FSCDIN
10 14,6 28 48 45
R16-16K3-FSCDIN
16 14,4 28 48 61
R16-20K2-FSCDIN
20 15 28 48 56
R20-05K4-FSCDIN
5 19,5 36 58 40
R20-10K3-FSCDIN
10 19,3 36 58 48
R20-20K2-FSCDIN
20 19,5 36 58 57
R20-20K4-DFSCDIN
20 19,5 36 58 57
R25-05K4-FSCDIN
5 24,9 40 62 43
R25-10K4-FSCDIN
10 24,4 40 62 61
R25-25K2-FSCDIN
25 24,7 40 62 70
R25-25K4-DFSCDIN
25 24,7 40 62 70
R32-05K6-FSCDIN
5 31,7 50 80 48
R32-10K5-FSCDIN
10 31,8 50 80 77
R32-20K3-FSCDIN
20 31,8 50 80 88
R32-32K2-FSCDIN
32 31,9 50 80 88
R32-32K4-DFSCDIN
32 31,9 50 80 88
R40-05K6-FSCDIN
5 39,4 63 93 50
R40-10K4-FSCDIN
10 37,8 63 93 70
R40-20K3-FSCDIN
20 37,8 63 93 88
R40-40K2-FSCDIN
40 37,8 63 93 102
R40-40K4-DFSCDIN
40 37,8 63 93 102
R50-05K6-FSCDIN
5 49,3 75 110 50
R50-10K6-FSCDIN
10 47,9 75 110 90
R50-20K5-FSCDIN
20 48 75 110 132
R50-40K3-FSCDIN
40 50,3 75 110 149
R50-40K6-DFSCDIN
40 50,3 75 110 149
R63-10T6-FSIDIN
10 63,1 90 125 120
R16-05K4-DEB-N
5 15 28 48 47
R16-10K3-DEB-N
10 15 28 48 53
R16-16K2-DEB-N
16 15 28 48 55
R20-05K4-DEB-N
5 20 36 58 48
R20-10K3-DEB-N
10 20 36 58 55
R20-20K2-DEB-N
20 20 36 58 65
R25-05K4-DEB-N
5 25 40 62 53
R25-10K4-DEB-N
10 25 40 62 70
R25-25K2-DEB-N
25 25 40 62 79
R32-05K5-DEB-N
5 32 50 80 53
R32-10K5-DEB-N
10 32 50 80 83
R32-10K5-DEBH-N
10 32 56 86 87
R32-20K2-DEB-N
20 32 56 86 72
R40-05K5-DEB-N
5 40 63 93 56
R40-10K4-DEB-N
10 38 63 93 81
R40-20K2-DEB-N
20 38 63 93 79
R40-40K2-DEB-N
40 38 63 93 113
R50-05K5-DEB-N
5 50 75 110 58
R50-10K5-DEB-N
10 50 75 110 93
R50-20K3-DEB-N
20 50 75 110 101
R63-10K6-DEB-N
10 63 90 125 103
R63-20K6-DEBH-N
20 63 125 165 185
R63-20T5-DEB-N
20 63 95 135 169
R80-10K6-DEB-N
10 80 105 145 105
R80-20K5-DEB-N
20 80 125 165 157
R80-20K6-DEBH-N
20 78 135 175 175
R80-20K7-DEBH-N
20 78 135 175 195
R16-05T3-DDB
5 16 28 48 80
R20-05T4-DDB
5 20 36 58 82
R25-05T4-DDB
5 25 40 62 95
R25-10T3-DDB
10 25 40 62 115
R32-05T5-DDB
5 32 50 80 95
R32-10T4-DDB
10 32 50 80 138
R32-20T2-DDB
20 32 50 80 138
R40-05T5-DDB
5 40 63 93 109
R40-10T4-DDB
10 40 63 93 150
R40-20T2-DDB
20 40 63 93 150
R50-05T5-DDB
5 50 75 110 112
R50-10T4-DDB
10 50 75 110 164
R50-20T3-DDB
20 50 75 110 196
R63-10T6-DDB
10 63 90 125 205
R63-20T4-DDB
20 63 95 135 270
R80-10T6-DDB
10 80 105 145 205
R80-20T4-DDB
20 80 125 165 280
