Linear motor axes

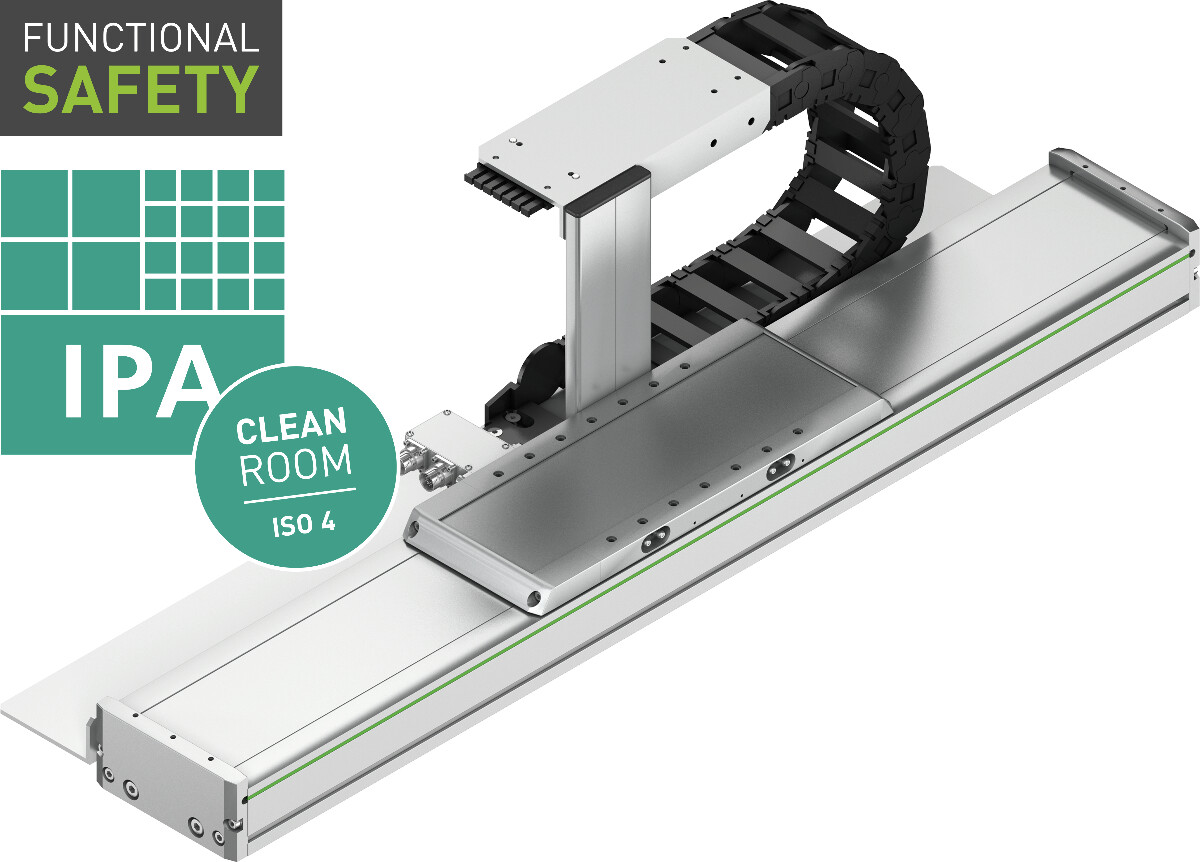

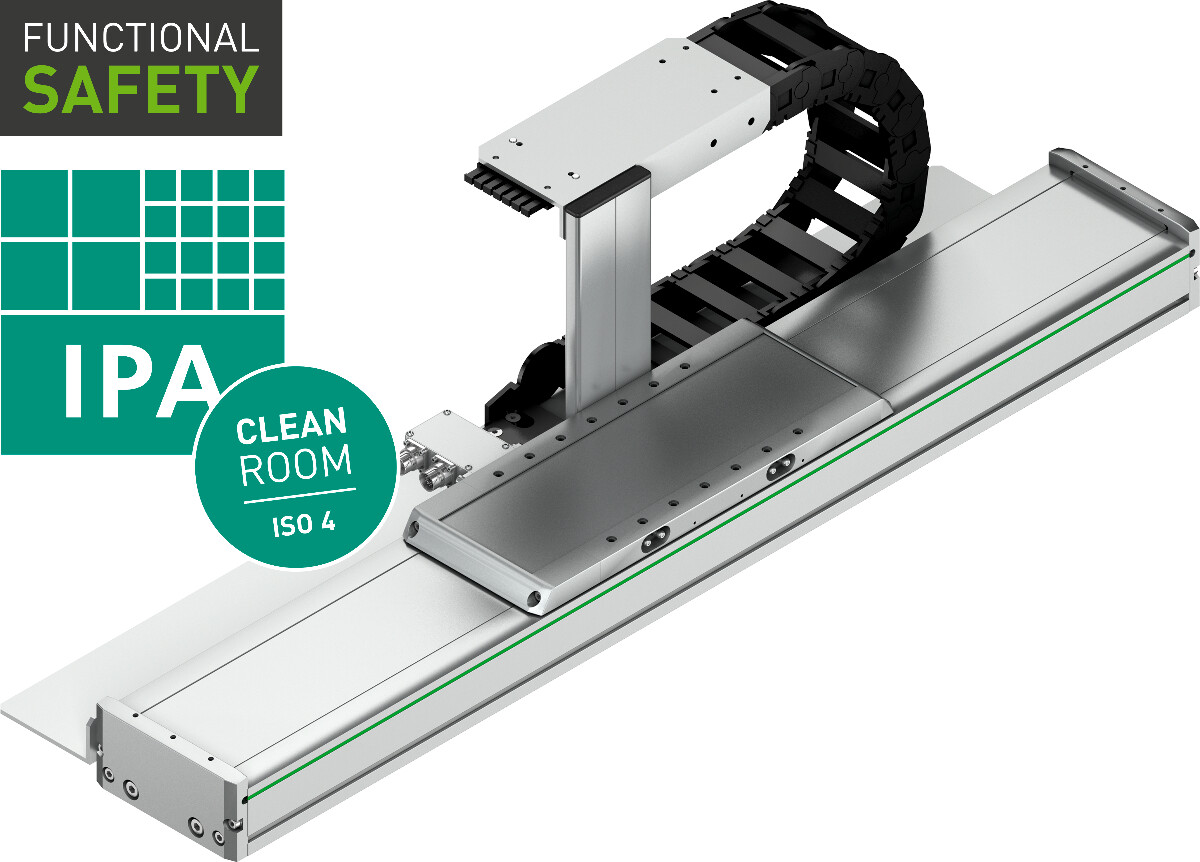

HIWIN linear axes with linear motor drive are particularly suitable for applications with the highest demands on dynamics, precision and synchronisation, while at the same time requiring minimal maintenance. Thanks to a freely selectable stroke in millimetre increments and a wide range of options (e.g. steel cover strip, limit switch, distance measuring system and additional slides in various sizes), the axes can be individually adapted to the respective application requirements.
Configurator
9 product(s)
Type
Axis profile
Profile width
Drive type
Max. stroke
vmax
amax
Repeatability
HT100LA01
 Aluminium 100 Linear motor 5500 5 50 ± 0,005
HT100LA02
 Aluminium 100 Linear motor 5450 5 50 ± 0,005
HT150LA12
 Aluminium 150 Linear motor 5450 5 60 ± 0,005
HT150LA13
 Aluminium 150 Linear motor 5350 5 80 ± 0,005
HT200LA22
 Aluminium 200 Linear motor 5400 5 60 ± 0,005
HT200LA23
 Aluminium 200 Linear motor 5300 5 80 ± 0,005
HT250LA32
 Aluminium 250 Linear motor 5450 5 60 ± 0,005
HT250LA33
 Aluminium 250 Linear motor 5350 5 80 ± 0,005

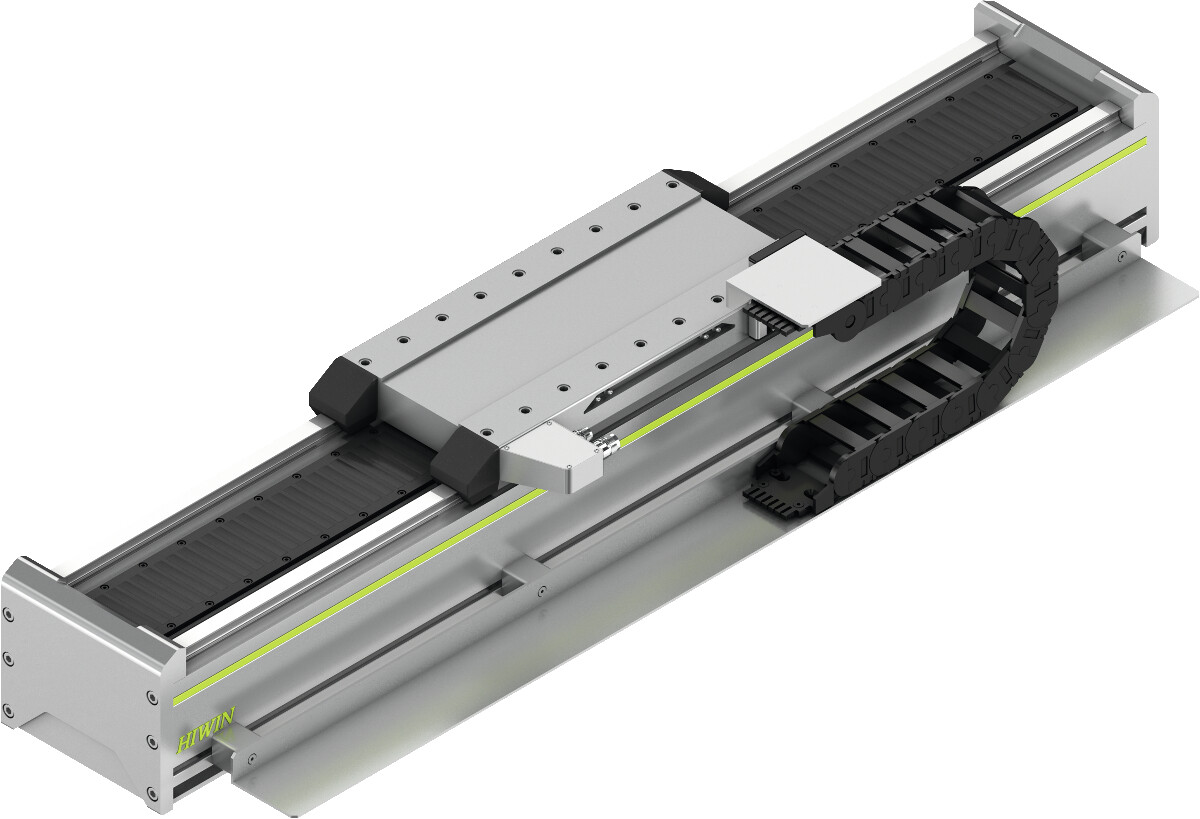

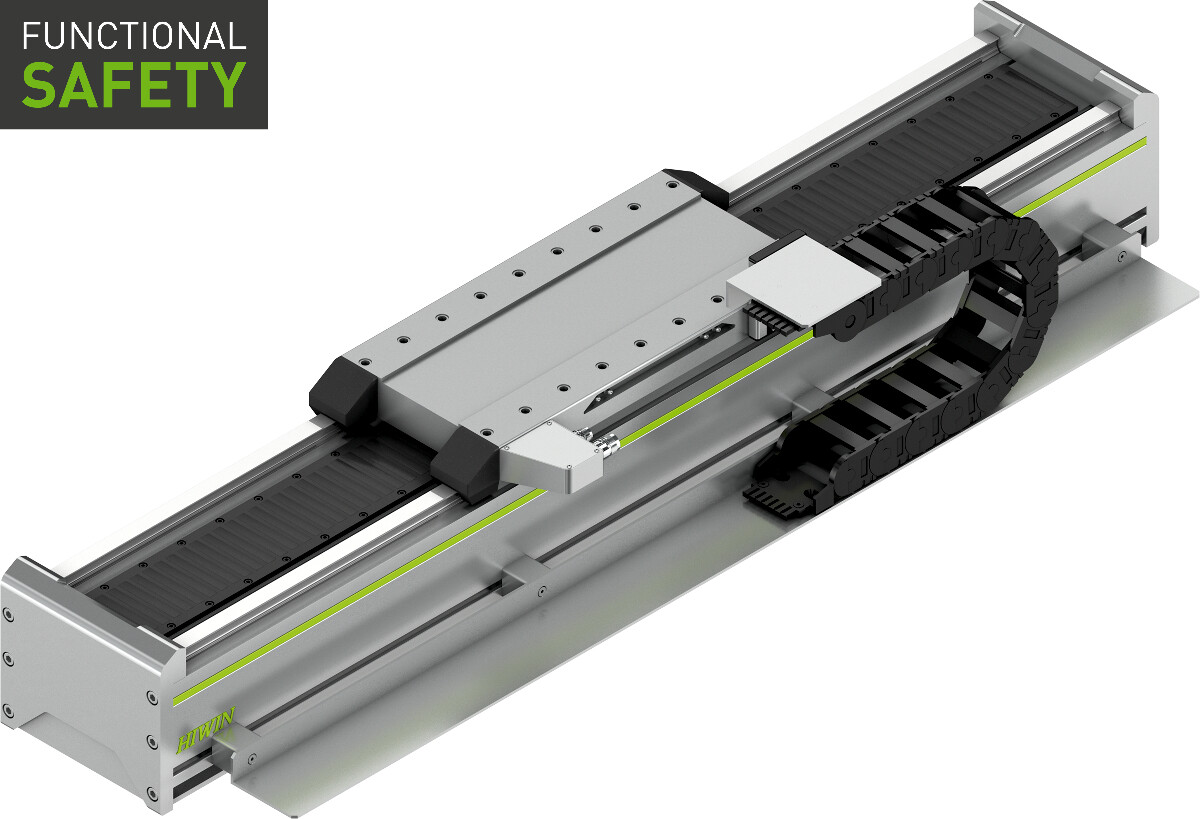

HB250LA34
 Aluminium 250 Linear motor 5160 4,5 80 ± 0,005
