Spindle axes

HIWIN linear axes with ballscrews are particularly suitable for applications with increased accuracy requirements. Thanks to a freely selectable stroke in millimetre steps and a wide range of options, the axes can be individually adapted to the respective application requirements.
23 product(s)
Type
Axis profile
Profile width
Drive type
Max. stroke
vmax
amax
Fx_max
Repeatability
Lead

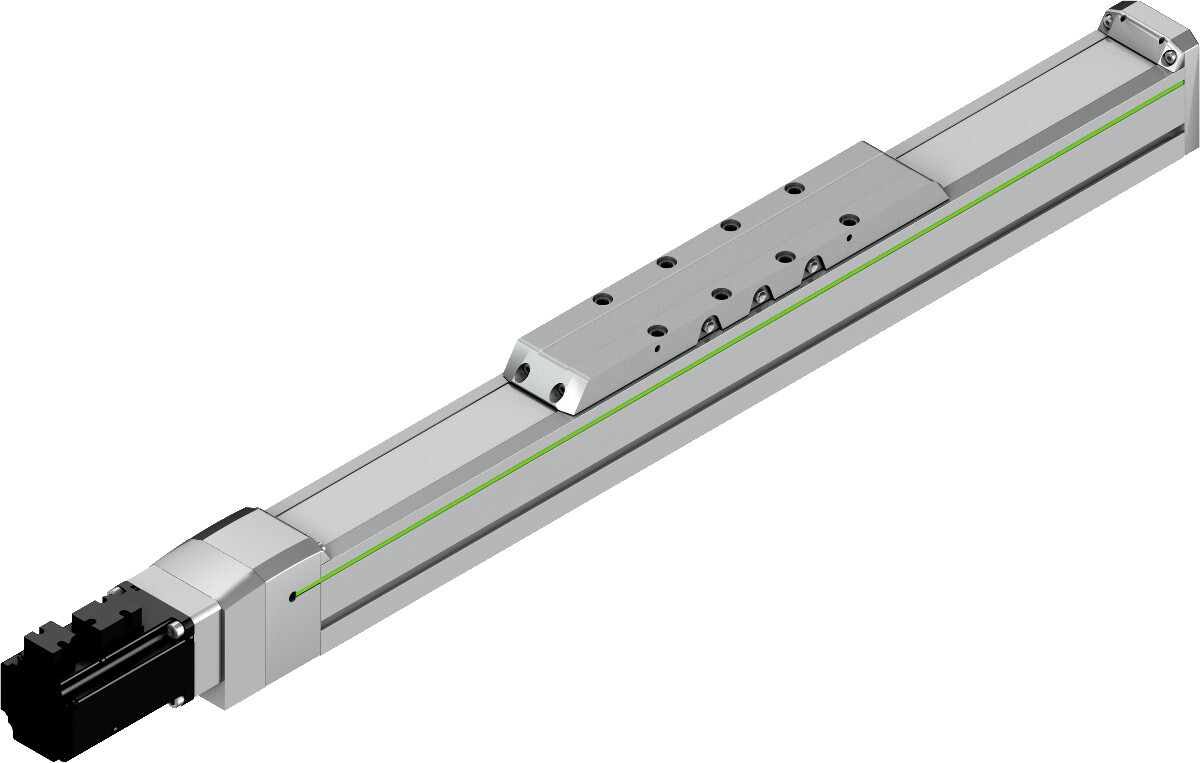

HM040S005
Aluminium 40 Ballscrew 1.200 0,25 15 1.271 ± 0,02
HM040S010
Aluminium 40 Ballscrew 1.200 0,5 15 792 ± 0,02
HM060S005
Aluminium 60 Ballscrew 2.950 0,25 15 2.541 ± 0,02
HM060S010
Aluminium 60 Ballscrew 2.950 0,5 15 1.989 ± 0,02
HM060S016
Aluminium 60 Ballscrew 2.950 0,8 15 1.915 ± 0,02
HM080S005
Aluminium 80 Ballscrew 4.050 0,25 15 3.186 ± 0,02
HM080S010
Aluminium 80 Ballscrew 4.050 0,5 15 3.149 ± 0,02
HM080S020
Aluminium 80 Ballscrew 4.050 1 15 1.620 ± 0,02
HM120S010
Aluminium 120 Ballscrew 5.400 0,5 15 6.592 ± 0,02
HM120S020
Aluminium 120 Ballscrew 5.400 1 15 4.069 ± 0,02
HM120S032
Aluminium 120 Ballscrew 5.400 1,6 15 2.744 ± 0,02

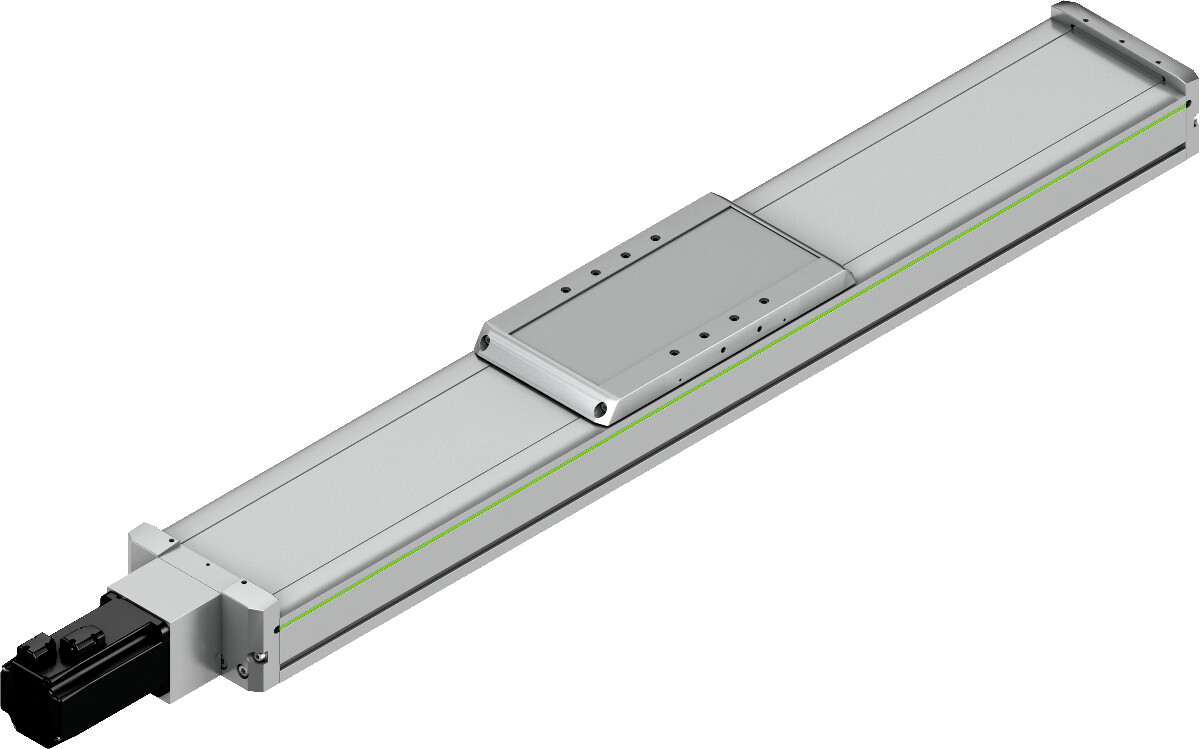

HT100S005
Aluminium 100 Ballscrew 3.000 0,25 15 2.541 ± 0,02
HT100S010
Aluminium 100 Ballscrew 3.000 0,5 15 1.989 ± 0,02
HT100S016
Aluminium 100 Ballscrew 3.000 0,8 15 1.915 ± 0,02
HT150S005
Aluminium 150 Ballscrew 5.150 0,25 15 3.186 ± 0,02
HT150S010
Aluminium 150 Ballscrew 5.150 0,5 15 3.149 ± 0,02
HT150S020
Aluminium 150 Ballscrew 5.150 1 15 1.620 ± 0,02
HT200S005
Aluminium 200 Ballscrew 5.050 0,2 15 3.535 ± 0,02
HT200S010
Aluminium 200 Ballscrew 5.050 0,5 15 3.499 ± 0,02
HT200S025
Aluminium 200 Ballscrew 5.050 1,25 15 1.786 ± 0,02
HT250S010
Aluminium 250 Ballscrew 5.500 0,5 15 5.300 ± 0,02
HT250S020
Aluminium 250 Ballscrew 5.500 1 15 4.069 ± 0,02
HT250S032
Aluminium 250 Ballscrew 5.500 1,6 15 2.774 ± 0,02
