Linear motor accessories

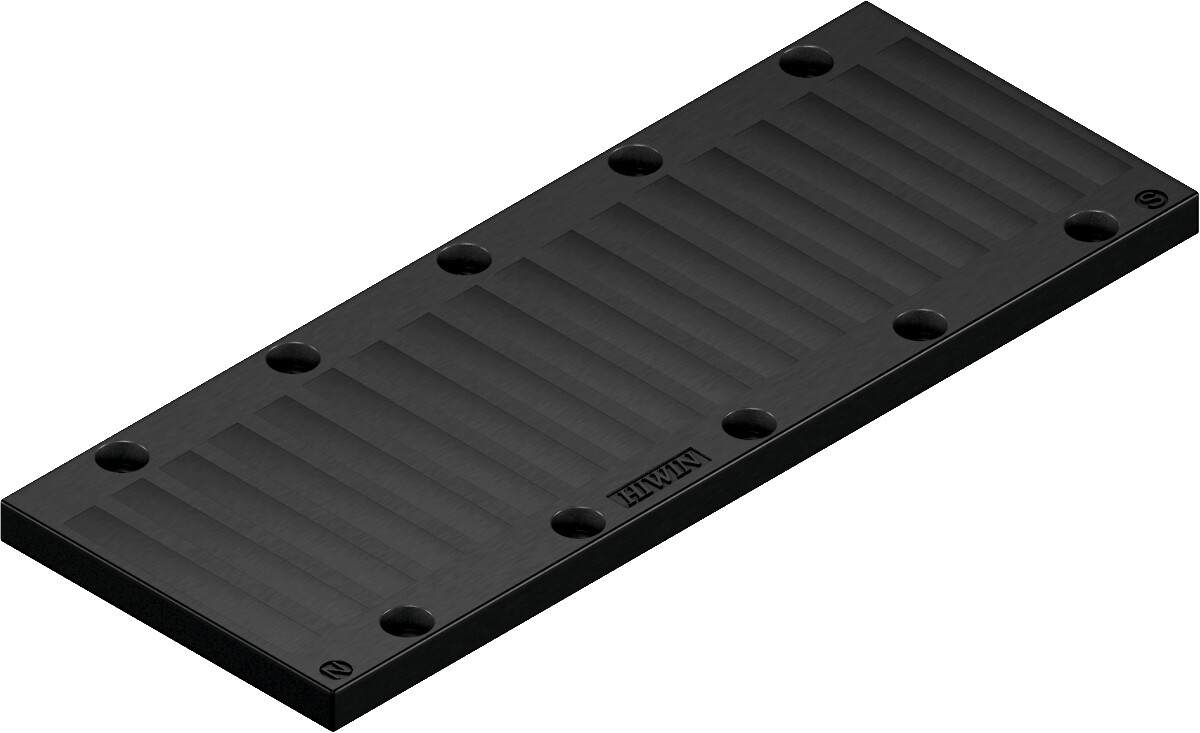

Stators

Stators for HIWIN linear motors are available in various lengths. The magnets are cast in epoxy resin to prevent dirt deposits. On request, stainless steel cover plates are available to provide additional protection in environments with high levels of contamination.
One-piece stator covers

The one-piece stator covers are available for stators of the HIWIN linear motor series LMFA and LMFP in widths 3 to 6 and consist of a cover plate made of stainless steel in customised length and end block sets for clamping the cover plate.
Segmented stator covers

The segmented stator covers are available for stators of the HIWIN linear motors of the LMFA and LMFP series in sizes 2 to 6. The segments are available in various fixed lengths that can be lined up to match the overall length of the stator track. The fixation of the cover segments on the stator is ensured by the magnetic attraction between the cover plates and the permanent magnets of the stators.
Forcer precision cooler for LMFA/LMFP

Since the electrical power is mainly converted in the forcer or primary part of the linear motor and most of the waste heat is generated there, the greatest improvements can be achieved using the precision cooler on the forcer. The precision cooler is assembled on the forcer and integrated into the existing cooling circuit. In order to achieve the best possible effect, the coolant inlet of the precision cooler (forcer) should be connected directly to the coolant outlet of the cooling system of the machine. Likewise, the coolant outlet of the precision cooler should be connected to the coolant inlet of the forcer. This ensures the best possible thermal decoupling and cooling of the linear motor.
Stator precision cooler for LMFA/LMFP

By using the stator precision cooler together with our HIWIN linear motors of the LMFA and LMFP series and forcer precision coolers, the thermal decoupling between linear motor and machine can be improved even more. Especially in short-stroke applications, the stators also reach high surface temperatures that promote higher temperatures in the machine working chamber. The stator coolers effectively counteract this by dissipating heat from the stators out of the machine via the cooling circuit. Depending on the size, a standard variant with a focus on the best possible cooling performance and alternatively a special version for applications that are difficult to access or have very limited space are available.

111 product(s)

1(current)
2

Type	Suitable for stators	Suitable for end block	Suitable for forcers	Suitable for stators	Lc	Cover strip clamping	L	L_min	L_max	Lc1	Stator precision cooling	N	Suitable for cover strip	Wc	Required end block set (without stator cooling)	P	Required end blocks/end block sets per stator track	Required end block set (standard stator precision cooling variant)	Wc1	Required end block set (special stator precision cooling variant)	Lc2	Wc2	Lc4	Wc3	Wc	Wc4	Wc1	Wc5	N	Hc1	Cooling system connection thread	n	Cooling system connection thread	2τ	M_S	Width	L_S	N
LMFC3-S-G end block set						Yes					Yes		LMF3-CE-Lx				LMFC3-S-G end block set (2×)				58,5		81		155		115			18,5	G 1/8 × 8 (1×)
LMFC4-S-G end block set						Yes					Yes		LMF4-CE-Lx				LMFC4-S-G end block set (2×)				58,5		81		201		161			20,5	G 1/8 × 8 (1×)
LMFC5-S-G end block set						Yes					Yes		LMF5-CE-Lx				LMFC5-S-G end block set (2×)				58,5		81		251		222			25,5	G 1/8 × 8 (1×)
LMFC6-S-G end block set						Yes					Yes		LMF6-CE-Lx				LMFC6-S-G end block set (2×)				58,5		81		345		316			27,5	G 1/8 × 8 (1×)
LMFC3-S end block						No					Yes		LMF3-CS-Lxxx/without cover strip				LMFC3-S end block (2×)				58,5		81		155		115			18,5	G 1/8 × 8 (1×)
LMFC4-S end block						No					Yes		LMF4-CS-Lxxx/without cover strip				LMFC4-S end block (2×)				58,5		81		201		161			20,5	G 1/8 × 8 (1×)
LMFC5-S end block						No					Yes		LMF5-CS-Lxxx/without cover strip				LMFC5-S end block (2×)				58,5		81		251		222			25,5	G 1/8 × 8 (1×)
LMFC6-S end block						No					Yes		LMF6-CS-Lxxx/without cover strip				LMFC6-S end block (2×)				58,5		81		345		316			27,5	G 1/8 × 8 (1×)
LMFC3-R-C-G end block set						Yes					Yes		LMF3-CE-Lx				LMFC3-R-C-G end block set (1×) + LMFC3-R-I-O-G end block set (1×)				58,5		81		155		115			18,5
LMFC3-R-IO-G end block set						Yes					Yes		LMF3-CE-Lx				LMFC3-R-C-G end block set (1×) + LMFC3-R-I-O-G end block set (1×)				58,5		81		155		115			18,5	G 1/8 × 8 (2×)
LMFC4-R-C-G end block set						Yes					Yes		LMF4-CE-Lx				LMFC4-R-C-G end block set (1×) + LMFC4-R-I-O-G end block set (1×)				58,5		81		201		161			20,5
LMFC4-R-IO-G end block set						Yes					Yes		LMF4-CE-Lx				LMFC4-R-C-G end block set (1×) + LMFC4-R-I-O-G end block set (1×)				58,5		81		201		161			20,5	G 1/8 × 8 (2×)
LMFC3-R-C end block						No					Yes		LMF3-CS-Lxxx/without cover strip				LMFC3-R-C end block (1×) + LMFC3-R-I-O end block (1×)				58,5		81		155		115
LMFC3-R-IO end block						No					Yes		LMF3-CS-Lxxx/without cover strip				LMFC3-R-C end block (1×) + LMFC3-R-I-O end block (1×)				58,5		81		155		115				G 1/8 × 8 (2×)
LMFC4-R-C end block						No					Yes		LMF4-CS-Lxxx/without cover strip				LMFC4-R-C end block (1×) + LMFC4-R-I-O end block (1×)				58,5		81		201		161
LMFC4-R-IO end block						No					Yes		LMF4-CS-Lxxx/without cover strip				LMFC4-R-C end block (1×) + LMFC4-R-I-O end block (1×)				58,5		81		201		161				G 1/8 × 8 (2×)
LMSA0S1																																		30	1,9	37	120	2
LMSA0S3																																		30	1,9	37	300	5
LMSA1S1																																		30	2,7	52	120	2
LMSA1S3																																		30	2,7	52	300	5
LMSA2S1																																		30	4,8	86	120	2
LMSA2S3																																		30	4,8	86	300	5
LMSA3S1																																		30	8,5	116	120	2
LMSA3S3																																		30	8,5	116	300	5
LMSACS1																																		30	9,7	126	120	2
LMSACS3																																		30	9,7	126	300	5
LMF0S1																																		30	3,7	48,5	120	2
LMF0S3																																		30	3,7	48,5	300	5
LMF1S1																																		30	5,8	88	120	2
LMF1S3																																		30	5,8	88	300	5
LMF2S1																																		30	9,8	50,5	120	2
LMF2S3																																		30	9,8	50,5	300	5
LMF3S1																																		46	16,2	134	184	2
LMF3S3																																		46	16,2	134	460	5
LMF4S1																																		46	22,3	180	184	2
LMF4S3																																		46	22,3	180	460	5
LMF5S1																																		46	25	240	184	2
LMF5S3																																		46	25	240	460	5
LMF6S1																																		46	40,1	334	184	2
LMCAS0																																		32	7		128	2
LMCAS3																																		32	7		320	5
LMCBS0																																		32	12		128	2
LMCBS3																																		32	12		320	5
LMCCS0																																		32	21		128	2
LMCCS3																																		32	21		320	5
LMCES2																																		60	20		300	5
LMCES1																																		60	20		120	2
LMF2-CE	LMF2SxE, LMF2SxEG, LMF2SxEP							500	50000						LMF2-S end block set (2×)
LMF3-CE	LMF3SxE, LMF3SxEG, LMF3SxEP							500	50000						LMF3-S end block set (2×)			LMFC3-S-G end block set (2×)		LMFC3-R-C-G end block set (1×) + LMFC3-R-I-O-G end block set (1×)
LMF4-CE	LMF4SxE, LMF4SxEG, LMF4SxEP							500	50000						LMF4-S end block set (2×)			LMFC4-S-G end block set (2×)		LMFC4-R-C-G end block set (1×) + LMFC4-R-I-O-G end block set (1×)
LMF5-CE	LMF5SxE, LMF5SxEG, LMF5SxEP							500	50000						LMF5-S end block set (2×)			LMFC5-S-G end block set (2×)
LMF6-CE	LMF6SxE, LMF6SxEG, LMF6SxEP							500	50000						LMF6-S end block set (2×)			LMFC6-S-G end block set (2×)
LMF2-S end block set						Yes					No		LMF2-CE-Lx				LMF2-S end block set (2×)				58,5				139		104			12,5
LMF3-S end block set						Yes					No		LMF3-CE-Lx				LMF3-S end block set (2×)				58,5				155		115			18,5
LMF4-S end block set						Yes					No		LMF4-CE-Lx				LMF4-S end block set (2×)				58,5				201		161			20,5
LMF5-S end block set						Yes					No		LMF5-CE-Lx				LMF2-S end block set (2×)				58,5				251		222			25,5
LMF6-S end block set						Yes					No		LMF6-CE-Lx				LMF6-S end block set (2×)				58,5				345		316			27,5
LMF2-CS				LMF2SxE, LMF2SxEG, LMF2SxEP
LMF3-CS				LMF3SxE, LMF3SxEG, LMF3SxEP
LMF4-CS				LMF4SxE, LMF4SxEG, LMF4SxEP
LMF5-CS				LMF5SxE, LMF5SxEG, LMF5SxEP
LMF6-CS				LMF6SxE, LMF6SxEG, LMF6SxEP
LMFC31			LMFA31/LMFP31		214					80,5				150					45			60		131		70		34,5	2				G 1/8 × 8 (2×)
LMFC32			LMFA32/LMFP32		375					241,5				150					45			60		131		70		34,5	4				G 1/8 × 8 (2×)
LMFC33			LMFA33/LMFP33		536					402,5				150					45			60		131		70		34,5	6				G 1/8 × 8 (2×)
LMFC34			LMFA34/LMFP34		679					563,5				150					45			60		131		70		34,5	8				G 1/8 × 8 (2×)
LMFC41			LMFA41/LMFP41		214					80,5				197					58,5			80		178		93,5		34,5	2				G 1/8 × 8 (2×)
LMFC42			LMFA42/LMFP42		375					241,5				197					58,5			80		178		93,5		34,5	4				G 1/8 × 8 (2×)
LMFC43			LMFA43/LMFP43		536					402,5				197					58,5			80		178		93,5		34,5	6				G 1/8 × 8 (2×)
LMFC44			LMFA44/LMFP44		697					563,5				197					58,5			80		178		93,5		34,5	8				G 1/8 × 8 (2×)
LMFC52			LMFA52/LMFP52		375					241,5				257					48,5			160		236		185,5		128,5	3			4	G 1/8 × 8 (2×)
LMFC53			LMFA53/LMFP53		536					402,5				257					48,5			160		236		185,5		128,5	3			6	G 1/8 × 8 (2×)
LMFC54			LMFA54/LMFP54		697					563,5				257					48,5			160		236		185,5		128,5	3			8	G 1/8 × 8 (2×)
LMFC62			LMFA62/LMFP62		375					241,5				351					55,5			240		330		249,5		175,5	4			4	G 1/8 × 8 (2×)
LMFC63			LMFA63/LMFP63		536					402,5				351					55,5			240		330		249,5		175,5	4			6	G 1/8 × 8 (2×)
LMFC64			LMFA64/LMFP64		697					563,5				351					55,5			240		330		249,5		175,5	4			8	G 1/8 × 8 (2×)
LMFC3-P-0092		LMFC3-x, LMFC4-x					92					1				0
LMFC3-P-0184		LMFC3-x, LMFC4-x					184					2				92
LMFC3-P-0276		LMFC3-x, LMFC4-x					276					3				184
LMFC3-P-0368		LMFC3-x, LMFC4-x					368					4				276
LMFC3-P-0460		LMFC3-x, LMFC4-x					460					5				368
LMFC3-P-0552		LMFC3-x, LMFC4-x					552					6				460
LMFC3-P-0644		LMFC3-x, LMFC4-x					644					7				552
LMFC3-P-0736		LMFC3-x, LMFC4-x					736					8				644
LMFC3-P-0828		LMFC3-x, LMFC4-x					828					9				736
LMFC3-P-0920		LMFC3-x, LMFC4-x					929					10				828
LMFC3-P-1012		LMFC3-x, LMFC4-x					1012					11				920
LMFC3-P-1104		LMFC3-x, LMFC4-x					1104					12				1012
LMFC3-P-1196		LMFC3-x, LMFC4-x					1196					13				1104
LMFC3-P-1288		LMFC3-x, LMFC4-x					1288					14				1196
LMFC5-P-0092		LMFC5-x					92					1				0
LMFC5-P-0184		LMFC5-x					184					2				92
LMFC5-P-0276		LMFC5-x					276					3				184
LMFC5-P-0368		LMFC5-x					368					4				276
LMFC5-P-0460		LMFC5-x					460					5				369
LMFC5-P-0552		LMFC5-x					552					6				460
LMFC5-P-0644		LMFC5-x					644					7				552
LMFC5-P-0736		LMFC5-x					736					8				644
LMFC5-P-0828		LMFC5-x					828					9				736
LMFC5-P-0920		LMFC5-x					929					10				828
